Design of the ventilated facade Hidden clip DGO

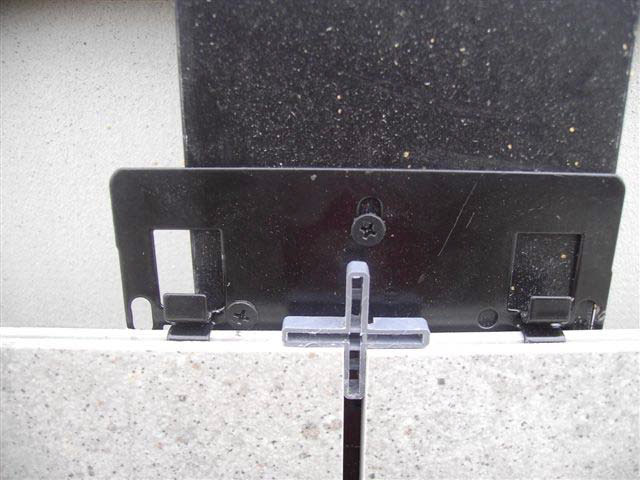

The panels are machined with punctual incisions on their edges The system does not require horizontal profiles

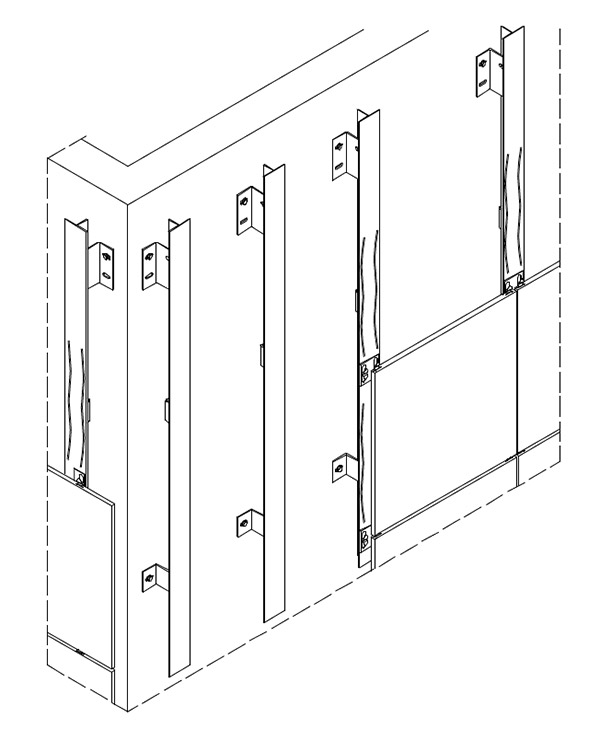

For everything else, the structure of the system is made up of:
- Support brackets (concrete slabs)
- Retention brackets (gero)
- The vertical profile “T”
The vertical “T” profile is special for this type of system to be able to anchor the clip well on it’s entire surface and have enough space to apply the adhesive that prevents detachments in the event of intermediate breaks and vibrations due to the wind.
For a better use of space and material, and savings in quartering, “L” angle profiles are used in the corners and breaks.
Advantages of the DGO hidden clip system
The system saves money by not having a horizontal structure, and with spot machining in corners and hidden clips, the system is not seen from the front.
